Network Security slide set

## OSI model
- "Open Systems Interconnection" model, developed starting in 1977
- Everybody (including many textbooks!) uses the OSI model diagrams (see next slide), and talks about TCP/IP
  - But they are not the same!
  - TCP/IP does not fit perfectly into the OSI model
  - We don't care too much about the differences here, so we'll do that as well
  - See [here](http://en.wikipedia.org/wiki/OSI_model#Comparison_with_TCP.2FIP) for details

## OSI Model
[![OSI model](images/networking/OSI_Model_v1.svg)](https://commons.wikimedia.org/wiki/File:OSI_Model_v1.svg)

## TCP/IP Model
[![OSI model](images/networking/TCPIP_model.svg)](https://commons.wikimedia.org/wiki/File:OSI_Model_v1.svg)

## Protocol stack: physical layer
[![Ethernet cable](images/networking/ethernet-cable.webp)](https://commons.wikimedia.org/wiki/File:Ethernet_cable._SAM.jpg)
- Is charged with getting data<br>from one end of the 'wire'<br>to the other end
- Examples:
  - copper wire
  - fiber optic cable
  - wireless transmission<br>(WiFi, Bluetooth, satellite<br>communication), etc.

## Protocol stack: data link layer

- Is charged with getting one packet of data from one host to another connected host
  - Via the next layer down
- Most common example is Ethernet
  - Other examples: ARP, ISDN, PPP, ATM, FDDI, SONET, SDH, etc.

## Protocol stack: network layer

- Is charged with *routing* a *single* packet of data from one computer to another (via the next layer down)
- In TCP/IP, called the "Internet" or "Internet Protocol" (hence "IP") layer
- Example protocols: IP, ICMP (used for 'ping'), IPsec (for VPNs)

<h2 class="r-fit-text">Protocol stack: transport layer</h2>
<img src="http://www.cs.virginia.edu/~asb2t/duimg/n01/image7.png" style="height:300px">

- Is charged with taking a large piece of data, splitting it into smaller packets, sending each packet to the destination (via the next layer down), and (maybe) reassembling it at the destination
  - It might request a missed packet to be re-sent
- Example protocols: TCP, UDP

## Protocol stack: session & presentation layers
- Are charged with such tasks as managing network sockets, compressing/encoding/ encrypting the data, etc.
- These layers do not exist in the TCP/IP model!
  - This functionality is included in the TCP/IP application layer
- Example protocols: TLS, SSL, NetBIOS

## Protocol stack: application layer
![Web browsers](images/networking/web-browsers.webp)
- Is the top-level protocol used to communicate to the application on the other end
- Example protocols: DHCP, DNS, FTP, HTTP, IMAP, NTP, POP, SMTP, SSH

## Network device terminology
- Node: any device on a network
- Switch: a node that connects networks on the *data link layer* only
  - Also called a bridge
- Router: a node that connects networks on the *network layer*
- Gateway: a node that connects two networks that (potentially) use different protocols
  - Also translates addresses, etc.
- Firewall: blocks 'bad' traffic (more on this in a few slides)

## How a packet travels
![](http://www.cs.virginia.edu/~asb2t/duimg/n01/image5-mod.png)
- Note that routers connect more than 2 wires
  - Otherwise itʻs a gateway

## Packets in packets
<img src="http://www.cs.virginia.edu/~asb2t/duimg/n01/image6.png#stretch" class="stretch">

## Firewall
- A firewall prevents unrequested network connections from outside hosts
  - Typically part of a residential 'gateway' or 'router'
  - It isolates the 'inside' network and the 'outside' network
  - If you request data (a http connection), the sent data is then 'requested' data, and is allowed to pass through
  - You can 'poke a hole' in a firewall to allow access to a certain port (such as ssh)

## Protocol stack: physical layer
[![Ethernet cable](images/networking/ethernet-cable.webp)](https://commons.wikimedia.org/wiki/File:Ethernet_cable._SAM.jpg)
- Is charged with getting data from one end of the 'wire' to the other end
- Examples:
  - copper wire
  - fiber optic cable
  - wireless transmission (WiFi, Bluetooth, satellite communication), etc.

## Copper Wire Evolution

- Early Ethernet used co-axial cable
  - Only 2 wires, one ground and one data
  - Multiple devices on the same network could have their data *collide*
  - Called 10base-2

## Copper Wire Evolution
[![](https://upload.wikimedia.org/wikipedia/commons/thumb/d/d7/Ethernet_RJ45_connector_p1160054.jpg/992px-Ethernet_RJ45_connector_p1160054.jpg)](https://commons.wikimedia.org/wiki/File:Ethernet_RJ45_connector_p1160054.jpg)
- Modern Ethernet uses 10-base/T
  - 8 wires, twisted in pairs
  - Separate pairs for each direction

## Copper Wire Evolution
- Various manufacturing qualities determine maximum speed
[![](https://telecom.samm.com/Data/EditorFiles/images/blog/015-what-is-the-ethernet/history-of-ethernet-lan-cables-categories.png)](https://telecom.samm.com/history-of-ethernet-lan-cables-categories)

## Speed Comparison

| Type | Year | Speed<br>(Mbit/s) | 10 Gb<br>download | Aliases |
|----|----|----|---|---|
| 10base-2 | 1983 | 10 | 2h, 13m, 20s |
| 100base-T | 1995 | 100 | 13m, 20s | fast Ethernet |
| Comcast avg | N/A | 236 ([ref](https://www.cnet.com/home/internet/xfinity-speed-test-results/)) | 5m, 38s |
| 1000base-TX | 1999 | 1000 | 1m, 20s | gigabit Ethernet |
| 10Gbase-T | 2006 | 10,000 | 8s | 10 gigabit Ethernet |
| 40G fiber | 2007 | 40,000 | 2s |
| 802.11b wi-fi | 1999 | 11 | 2h, 1m, 12s | Wi-Fi 1 |
| 802.11g wi-fi | 2003 | 54 | 24m, 41s | Wi-Fi 3 |
| 80211n wi-fi | 2014 | 600 | 2m, 13s | Wi-Fi 4 |
| 80211ac wi-fi | 2014 | 6,933 | 11s | Wi-Fi 5 |

## Early Ethernet: Hub
[![hub](https://upload.wikimedia.org/wikipedia/commons/d/d9/4_port_netgear_ethernet_hub.jpg)](https://commons.wikimedia.org/wiki/File:4_port_netgear_ethernet_hub.jpg)
- A *hub* connects devices on the same shared network
  - Basically a soldering of the wires together
  - Creates the topology on the previous slide
- Collisions happen quite often
- They haven't been sold since the 1990's
  - Replaced by swithces

## Wifi Speed Comparison

Speeds have improved over time

| Type | Year | Speed<br>(Mbit/s) | 10 Gb<br>download | Aliases |
|----|----|----|---|---|
| 802.11b wi-fi | 1999 | 11 | 2h, 1m, 12s | Wi-Fi 1 |
| 802.11g wi-fi | 2003 | 54 | 24m, 41s | Wi-Fi 3 |
| 80211n wi-fi | 2014 | 600 | 2m, 13s | Wi-Fi 4 |
| 80211ac wi-fi | 2014 | 6,933 | 11s | Wi-Fi 5 |

## Wi-Fi encryption
- This encrypts all data sent over a wireless network
  - This encryption is done at the network or data-link level
  - Application-level encryption (https, ssh, imaps, etc.) is on top of Wi-Fi encryption
- We will see wireless security later this semester

## Physical attacks
- Plug an Ethernet cable into a hub (or switch), and you have access (probably) to the network
- Cut the wires, and you have caused network problems
- Send high voltages through the Ethernet cables to short out the network devices
- Send interference on the wifi channels to block other devices from connecting
- Yank the hard drive and image it
  - Encryption would block this
- Lots of wifi attacks, which we'll see later

## Plunder Bug LAN Tap
![](https://hak5.org/cdn/shop/products/plunderbug2_2000x.jpg?v=1550959645)
- Available [here](https://hak5.org/products/bug) for $80 from [hak5.org](https://hak5.org)
- Network monitoring and recording via a USB-C port
  - There is another network port on the end not visible in the picture

## Packet Squirrel
![](https://hak5.org/cdn/shop/products/ps2_2000x.png?v=1689035859)
- Available [here](https://hak5.org/products/packet-squirrel-mark-ii) for $100 from [hak5.org](https://hak5.org)
- It intercepts network packets, and can pass them to the USB-connected computer
  - Also has a network jack on the far end
- Can perform network manipulation, monitoring, and various attacks

## LAN turtle
![](https://hak5.org/cdn/shop/products/lan-turtle_2000x.jpg?v=1592003446)
- Available [here](https://hak5.org/products/lan-turtle) for $80 from [hak5.org](https://hak5.org)
- Discrete network access; looks like an Ethernet adapter
- Chip inside can perform MITM attacks, scan networks, manage remote access, etc.

## USB Rubber Ducky
![](https://hak5.org/cdn/shop/products/usb-rubber-ducky_mk2_2000x.jpg?v=1659974440)
- Available [here](https://hak5.org/products/usb-rubber-ducky) for $80 from [hak5.org](https://hak5.org)
- Looks like a USB flash drive
- Appears to the computer as a keyboard
  - Some pre-set commands come built in
  - You have it "type" custom commands
- Technically not a network attack

## Bash Bunny

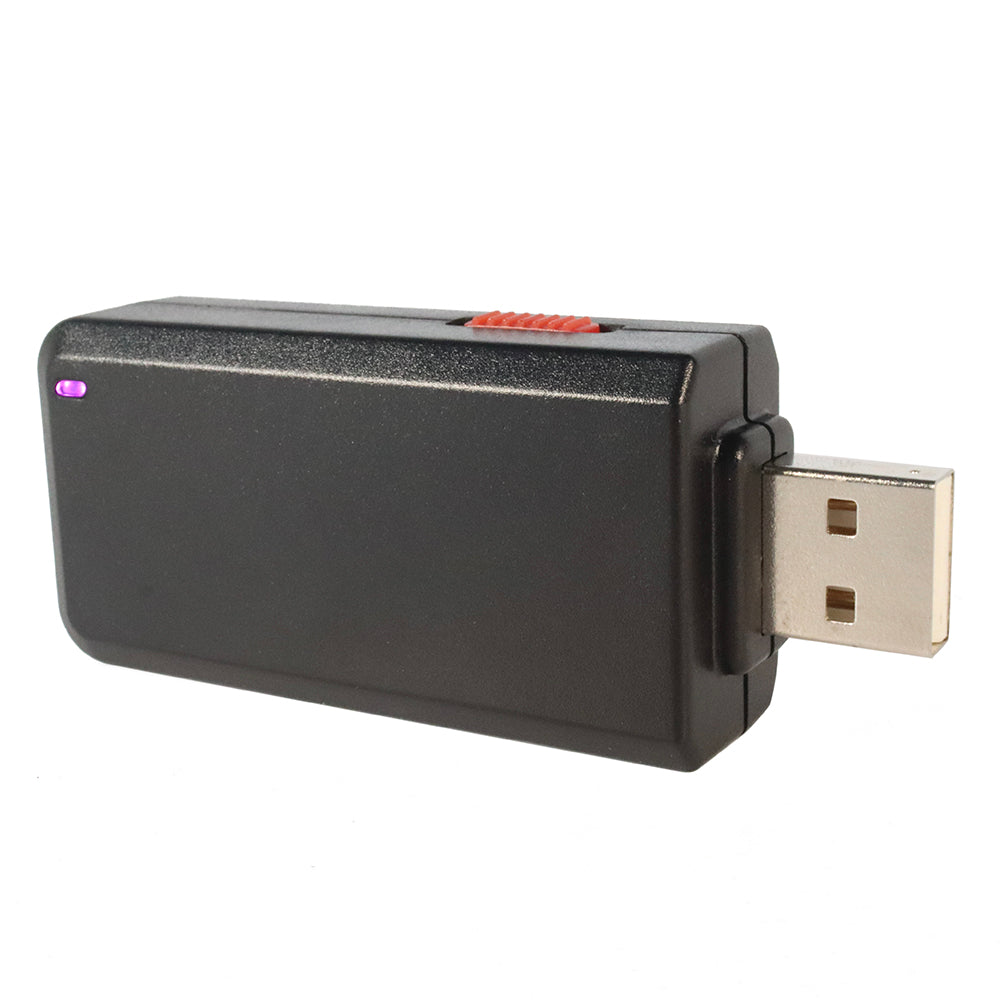

![](https://hak5.org/cdn/shop/products/bash-bunny-mk2_001_c58d9658-b151-4328-af26-11eef3c47355_2000x.jpg?v=1624910237)
- Available [here](https://hak5.org/products/bash-bunny) for $120 from [hak5.org](https://hak5.org)
- Has a series of pre-programmed exploits to try on whatever computer it is plugged into
- LED light turns green when one works
- Technically not a network attack

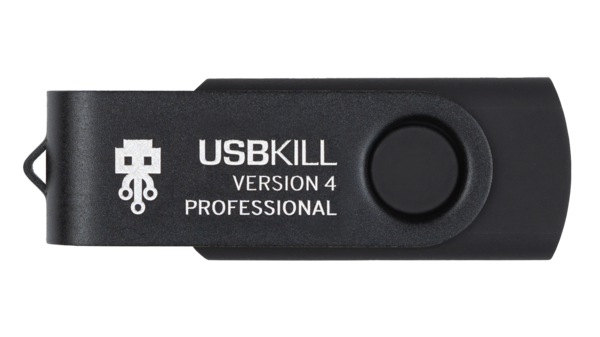

## USBKill
![](https://usbkill.com/cdn/shop/files/V4-key-professional_grande_1_600x337.png?v=1614343820)
- Available [here](https://usbkill.com) for `$`56 to `$`145, depending on the model
- A high Farad capacitor that charges from the USB port
- Then shoots that power back into the machine, likely frying it
- Technically not a network attack

## Defenses
![](https://m.media-amazon.com/images/I/71epm7DRjBL._AC_SL1500_.jpg)
- Only three of these attacks do *physical* damage:
  - The electrical surge over the Ethernet wire
    - [This $16 device on Amazon](https://www.amazon.com/dp/B00UYXRDU8) can protect against this
  - Cutting the network wires
    - Block physical access to all unauthorized individuals
  - USBKill
    - Block physical access to all unauthorized individuals
- The other attacks allowed physical access for a software attack
