# Contents [Introduction](#/intro) [File Formats](#/files) [Virus Infections](#/infections) [Basic Virus Stealth](#/stealth) [Advanced Virus Stealth](#/advanced) [Even More Advanced Virus Stealth](#/moreadvanced)
# Introduction
## Computer Virus - Malware that: - Alters an executable file and inserts its own code in there - Often a binary executable, but can be a script, batch file, etc. - At some point during execution, control is transferred to the virus - Or at least the transfer of control is attempted... - Often (but not always!) has a *payload* ## Why Windows as a target? - Most viruses affect Windows -- but why? - Market share! - As of September 2018, Windows has 82% of the market, Mac OS X 13%, Linux 2% ([source](http://gs.statcounter.com/os-market-share/desktop/worldwide/)) - That is home computer share, and does not include, say, Amazon's clusters - Android is 25% of all viruses, but that is not included above - Relative weak security, compared to Linux and Mac OS X - Main user often has admin access ## Virus arms race - The loop: - Virus writers will develop a creative new way to "hide" from the anti-virus scanners - Anti-virus scanners will adapt, and be able to detect the new virus - Rinse, lather, repeat - This played out especially in the 1980's and 1990's - Nowadays malware has moved on to other infection methods
# File Formats

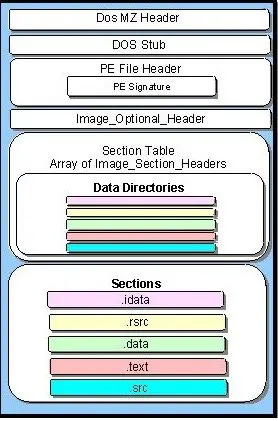

## Windows PE file format ![PE format](https://resources.infosecinstitute.com/wp-content/uploads/112015_2323_2MalwareRes1.jpg) - Parts: - DOS header - DOS stub - PE header - Where Windows
looks... - PE sections - .data section - .rdata section - .text section Image from [here](http://resources.infosecinstitute.com/2-malware-researchers-handbook-demystifying-pe-file/#gref) ## Linux ELF Files ![ELF file](https://upload.wikimedia.org/wikipedia/commons/thumb/7/77/Elf-layout--en.svg/693px-Elf-layout--en.svg.png) - Similar in concept to PE files - No DOS header, though! - Same common sections - .data, .text, .rodata, etc. - Meant as a generic format - Runs on Linux, Playstation,
many UNIX OSes,
Android (sorta), etc. - Image from [Wikipedia](https://en.wikipedia.org/wiki/Executable_and_Linkable_Format) ## PE Sections - .text: Code - .data: Initialized data - .bss: Uninitialized data - .rdata: Const/read-only (and initialized) data - .edata: Export descriptors - .idata: Import descriptors - .reloc: Relocation table - .rsrc: Resources (icon, bitmap, dialog, ...) (shamelessly copied from [here](https://stackoverflow.com/questions/19012300/whats-the-difference-between-rdata-and-idata-segments)) ## Linking a PE file ![PE file linking](images/viruses/pe-linking.png) - Compiler produces .o files - Each .o has its own sections - Linker combines into the PE - Linker: the last compiler stage ## Linking a PE file - Why the dead spaces? - Alignment restrictions - Perhaps 128 byte boundaries - Some linkers make PE file align to page boundaries - Memory pages are much bigger (1 Kb to 4 Kb) - This simplifies the loader's job - But makes PE file bigger on disk ## PE file expansion ![PE file expansion](images/viruses/pe-expansion.png) ## PE file expansion - Why the expansion? - Memory will have different alignment restrictions than the file on disk - Loader increases dead spaces to use page boundaries, while alignment is to a lesser size (e.g. 128 bytes) in the PE file on disk - Page sizes are 1 Kb to 4 Kb - The OS can place *restrictions* on pages (read-only, no-execute, etc) - Like unpacking a suitcase...
# Virus Infections
## File infection modalities - Beginning of .text section with Destructive Overwrite - Random Location in .text section with Destructive Overwrite - Will not always execute! - Appending Viruses - Multiple Techniques - Cavity Viruses (possibly fractionated) - Compressing Viruses - Entry-Point Obscuring (EPO) Viruses - Including IAT replacement ## The "tricky jump" - The most common technique to transfer control to a virus - Recall that the `ret` assembly command pops an address from the stack and then jumps there
## The "tricky jump" - Insert virus code somewhere - At the end, in a cavity, etc. - Find a suitable `ret` in some subroutine - Overwrite the last few instructions in that subroutine with: - `push [virus code address]` - `ret` - Saved instructions are put into the virus code - At the end, prior to the ret
## Detecting a tricky jump - This is very easy to find! - Just look for a `push` followed immediately by a `ret` - No compiler would ever compile assembly that does that - Virus writers got creative: - Added a bunch of nops between (`add eax, 0`, etc.) - Anti-virus researchers figured out how to detect those - So better stealth was needed...
# Basic Virus Stealth
## Viruses must be stealthy - Otherwise you immediately know something is wrong, and you fix it, removing the virus - Thus, the virus must: - Quickly execute its payload (and possible other infections) - Jump back to the "expected" behavior when done ## Entry-Point Obscuring (EPO) Viruses - An EPO virus obscures its own entry point by finding a call instruction in the targeted PE file and "hijacking" the call so that the virus code is called instead - Thus, we find a `call` opcode and replace the target with the virus address - A good EPO virus will save all registers, and then restore them on the way out ## Detecting Call-Hijacking Viruses - Check if any of the `call` targets are outside the .text section of code - The .reloc section is examined by modern anti-virus software to see if it looks like a legitimate .reloc section - Code patterns such as saving state, tricky jumps, etc., can be detected in the .reloc section ## Calling library functions - When your binary code calls a library function - such as `printf()`, or `<<` on `cout`, etc. - The program consults the Import Address Table (in Windows) - aka the .dynsym section in Linux - aka the LC\_DYLD\_INFO section in Mac OS X - And looks up the address (in the libc library) for `printf()` - The *loader* patches the address for `printf()` (and other methods) into the IAT when the program starts up ## EPO Viruses: IAT Replacement - A virus can change the address in the IAT to that of the virus code - It saves the "real" address and jumps there when done - Several function pointers can be saved in the virus body, then replaced with pointers to the virus code - After the virus code is memory-resident, it can restore the IAT in memory so that the API is preserved and stealth is maintained
# Advanced Virus Stealth
## Anti-disassembly techniques - Prevent a disassembly (i.e., printout) to hinder analysis - Examples: - Encrypt the virus (machine) code (next slide) - Obfuscated computation (next next slide) - Using checksums (next next next slide) - Compressed code (like encrypted viruses) ## Example: Cascade Virus - The simple decryptor of Cascade, circa 1990: ``` lea si,Start ; start of encrypted code ; (computed by virus) mov sp,0682h ; length of encrypted code (1666 bytes) Decrypt: xor [si],si ; xor code with its address xor [si],sp ; xor code with its inverse index inc si ; increment address pointer dec sp ; decrement byte counter jnz Decrypt ; loop if more bytes to decrypt Start: ; virus code body ``` - Note that one of the `xor` commands is xor'ing it with the address, which will change with each infection - Thus, pattern matching won't find the code! - But pattern matching can find the decryptor... ## Obfuscated Computation - Example from Szor text, p. 223 (section 6.2.3): - Straightforward code to write 256 bytes into a file: ``` mov cx, 100h ; 100h = 256 bytes to write mov ah, 40h ; 40h = DOS function number int 21h ; Invoke DOS handler ``` - Convoluted code to do the same thing: ``` mov cx, 003Fh ; cx = 003fh inc cx ; cx = 0040h xchg ch, cl ; swap ch, cl (cx = 4000h) xchg ax, cx ; swap ax, cx (ax = 4000h) mov cx, 0100h ; cx = 100h int 21h ; Invoke DOS handler ``` ## Checksums - Instead of: ```c for (each prototype in DLL export table) if (0 == strcmp(name,"GetFileHandle(int)")) infect(current export table address); endfor ``` which has the subroutine name clearly visible, use: ```c int ConstantName = 0x89f7e5b2; // Computed by virus writer for (each prototype in DLL export table) if (checksum(name) == ConstantName) infect(current export table address); endfor ``` ## Anti-debugging techniques - Prevent tracing the code in a debugger - Techniques: - Hook interrupts 1 and 3 (next slide) - Pre-compute a checksum of code, so if it's modified (by a debugger placing an interrupt there), it can choose not to execute - Detect debugger changes to the stack (next next slide) - Use the stack pointer as a counter for a decryption routine ## Hooking interrupts - There are interrupts for single-stepping (INT 1) and breakpoints (INT 3) - A debugger will "register" (aka "hook") the interrupt - This means telling the CPU to execute a particular address of code when that interrupt is called - It will then *overwrite* the instruction to break at with `INT 3` - Once in the handler, the original instruction is restored, and the debugger pauses at a break point ## Hooking interrupts, cont'd - So a virus can put its code as an *interrupt handler* for either, and then call the interrupt directly - The virus won't work under a debugger, then! ## Detecting Stack Changes - Without single-step debug state changes, a location on the stack will remain unchanged until an instruction changes it - But will be changed by the debugger after every instruction during single-step debug - To detect this: ``` mov rbp,rsp ; rbp gets current stack pointer push rax pop rax ; old pushed value still at [rbp-8] ; which is beyond current stack cmp qword ptr [rbp-8],rax ; equal if no debugger jne DEBUG ; debugger detected! Go abort! ``` ## Anti-emulation techniques - Prevent emulation, either in a full virtual environment (such as VirtualBox) or just a regular emulator - Techniques: - Attempt to throw exceptions - Emulators have a hard time determining exactly when an exception will occur - Use long idle loops - Takes longer in emulators - Be a time or logic bomb - Won't always work, then! ## Anti-heuristic techniques - A heuristic is an algorithm for determining if there is a virus - Something that can find *if* a virus exists (by a tricky jump, say), if not necessarily the exact virus - Techniques: - EPO viruses - Re-arrange PE files so the virus is not "appended" anymore ## Anti-goat techniques - A goat file (from the concept of sacrificial goats) is a dummy file of known content whose infection will signal the presence of a virus - Scattered around the disk in various file types that are prone to infection, e.g. .exe, .vbs, etc. - Viruses examine files for goat file characteristics: - Lots of no-ops and do-nothing instructions - Clusters of files with sequential numbers in their names, e.g. abcd0001.vbs, abcd0002.vbs, etc. ## Retroviruses - Malware that attacks the defenses - In biology, that's the immune system, such as what HIV does - For computers, that's the anti-virus software - Techniques: - Direct attack on the anti-virus software (rename the executable, kill the process, etc.) - Affect the integrity database - Deter anti-virus use with a "warning"
# Even More Advanced Virus Stealth
## Encrypted viruses - Encrypted viruses started appearing in the late 1980's - One could not pattern match on the virus body... - ... since part of the encryption was the *address* in the executable, which would vary with each different file infected - So one had to mutate the *decryptor* - This was all to prevent pattern matching detection ## Encryptor mutation types - Three types: - Oligomorphic have a pre-set number of different encryptors (say, a few dozen) - Polymorphic can permute the encryptor into millions or billions of variations - Metamorphic mutate the virus *body* into countless variations - Thus, no need for encryption! ## Assembly code permutation - Add nop instructions: `nop`; `add rax, 0`; `shr rax, 0`; etc. - Instructions that modify registers that are not used by the code - Instructions that have a cumulative zero net effect: `inc rax` followed by `sub rax, 1` - Re-ordering of instructions - Register replacement ## Oligomorphic viruses - Memorial was a Windows 95 oligomorphic virus that generated 96 different decryptors, choosing one at replication time - Detecting 96 different patterns is an impractical solution for virus scanners that must deal with thousands of viruses; pattern database size explosion would result - It inserted junk instructions at various points in the decryptor code ## Polymorphic viruses - First one was in 1990: [V2PX](https://en.wikipedia.org/wiki/1260_(computer_virus%29) or 1260 (because it was only 1260 bytes!) - Created by an anti-virus researcher as a proof-of-concept - Thus, it had no payload - Instructions were in three groups; within each group the instructions could have any order - A limited number of junk instructions could be inserted ## The 1260 Virus Decryptor - One instance of a decryptor: ```x86asm ; Group 1: Prolog instructions mov ax,0E9Bh ; set key 1 mov di,012Ah ; offset of virus Start mov cx,0571h ; byte count, used as key 2 ; Group 2: Decryption instructions Decrypt: xor [di],cx ; decrypt first 16-bit word with key 2 xor [di],ax ; decrypt first 16-bit word with key 1 ; Group 3: Decryption instructions inc di ; move on to next byte inc ax ; slide key 1 ; loop instruction (not part of Group 3) loop Decrypt ; slide key 2 and loop back if not zero ; Random padding up to 39 bytes Start: ; encrypted virus body starts here ``` ## 1260 Permutations - Group sizes were 3, 2, 2: total of 24 orderings of instructions - Could choose around a hundred thousand junk instructions - A limit of about 15 total junk instructions could be placed in 11 locations: several thousand possibilities - This yields around a billion variants - And in only 1260 bytes of (machine) code! ## Mutation Engines - Creating a polymorphic virus that makes no errors is really hard - Especially for the average virus writer - A few virus writers started creating mutation engines, which can transform an encrypted virus into a polymorphic virus - The Dark Avenger mutation engine, also called MtE, was the first such engine (DOS viruses, summer 1991, from Bulgaria) ## Early Metamorphics: Regswap - A Win 95 metamorphic virus from Dec, 1998 - Metamorphism was only register replacement: ``` pop edx pop eax mov edi,0004h mov ebx,0004h mov esi,ebp mov edx,ebp mov eax,000Ch mov edi,000Ch add edx,0088h add eax,0088h mov ebx,[edx] mov esi,[eax] mov [esi+eax*4+1118],ebx mov [edx+edi*4+1118],esi etc. etc. ``` - Not much of an obstacle with wildcards:
5
A
B
F
04000000 5
8
B
B
04000000
- Both variants match 5? B?04000000 ## Metamorphic Engine Example - The Evol virus of July, 2000 - Compare different generations, after several generations of evolution: ``` mov dword ptr [esi],55000000h ; 1st generation mov dword ptr [esi+0004],5151EC8Bh ; 1st generation ``` ``` mov edi,55000000h ;2nd gen., constant not changed mov dword ptr [esi],edi pop edi ; junk push edx ; junk mov dh,40h ; junk mov edx,5151EC8Bh ; constant not changed yet push ebx ; junk mov ebx,edx mov dword ptr [esi+0004],ebx ``` ## Evol Example cont. - A later generation shows the constant mutation starting: ``` mov ebx,5500000Fh ; 3rd gen., constant has changed mov dword ptr [esi],ebx pop ebx ; junk push ecx ; junk mov ecx,5FC0000CBh ; constant has changed add ecx,F191EBC0h ; ECX now has original value mov dword ptr [esi+0004],ecx ``` - As it replicates, the metamorphic engine makes just a few changes each generation, but the AV scanner code patterns change drastically - Eventually, all constants will be mutated many times ## Other approaches - [Zperm](https://www.symantec.com/security-center/writeup/2000-121812-0711-99): lots of jumps, so the reordering can be done easily - Zmorph: lots of small body-polymorphic subroutines that build the virus on the stack - [Zmist](https://en.wikipedia.org/wiki/Zmist): *disassembles* the PE file, inserts its code inside, and then *reassembles* the PE file - One of the most complex viruses ever written - [Simile](http://en.wikipedia.org/wiki/Simile_(computer_virus%29): benign payload, but had 14,000 lines of the metamorphic engine ## What this led to... - ... is that people gave up using pattern matching on viruses - Instead, started using emulation and heuristics ## Virus Creation Laboratory A virus creation kit, which does exactly what it sounds like it does ![VCL](images/viruses/vcl.png) ## NGVCK Next Generation Virus Creation Kit (2001) ![NGVCK](images/viruses/ngvck.gif) A VB script Similar to VCL, but could infect PE files Advanced assembly source morphing engine ## Anna Kournikova virus - Most known virus created with the VBSWG virus creation kit - People executed a AnnaKournikova.jpg.vbs e-mail attachment - ... because they wanted to see pictures of [Anna Kournikova](https://www.google.com/search?q=anna+kournikova&safe=on&tbm=isch) - Which then e-mailed itself out to everybody in their Outlook address box - Author, 20-year old Jan de Wit created it, even though he did not know how to write a program ## Why we still study viruses today - Being as this all happened decades ago - The techniques used in these viruses is present in modern malware - Among many other techniques...
