Networks

Networking Model

OSI model

  • “Open Systems Interconnection” model, developed starting in 1977
  • Everybody (including many textbooks!) uses the OSI model diagrams (see next slide), and talks about TCP/IP
    • But they are not the same!
    • TCP/IP does not fit perfectly into the OSI model
    • We don’t care too much about the differences here, so we’ll do that as well
    • See here for details

OSI Model

Protocol stack: physical layer

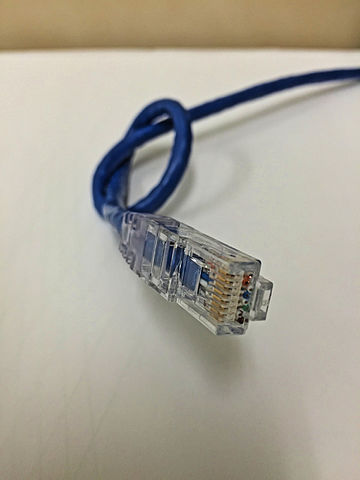

Ethernet cable

Ethernet cable
  • Is charged with getting data
    from one end of the ‘wire’
    to the other end
  • Examples:
    • copper wire
    • fiber optic cable
    • wireless transmission
      (WiFi, Bluetooth, satellite
      communication), etc.

Protocol stack: network layer

  • Is charged with getting a single packet of data from one computer to another (via the next layer down), ‘routing’ the computer between various nodes
    • This is the routing in ‘router’
  • In TCP/IP, called the “Internet” or “Internet Protocol” (hence “IP”) layer
  • Example protocols: IP, ICMP (used for ‘ping’), IPsec (for VPNs)

Internet Protocol (IP)

  • This is the TCP/IP version of the OSI network layer
  • IPv4 has addresses that are 32 bits: four 8-bit numbers

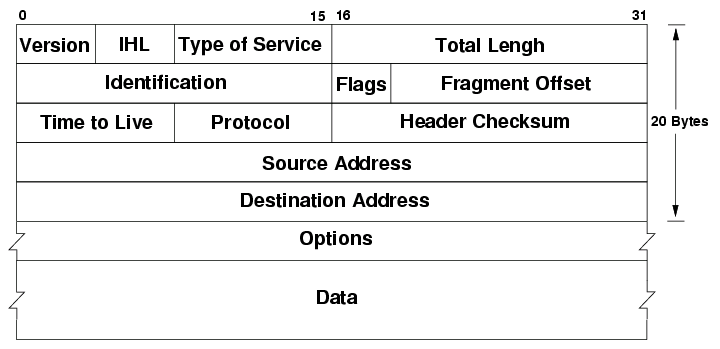

  • IPv6 has addresses that are 128 bits IPv4 header

Protocol stack: transport layer

  • Is charged with taking a large piece of data, splitting it into smaller packets, sending each packet to the destination (via the next layer down), and (probably) reassembling it at the destination
    • It will (typically) request a missed packet to be re-sent
    • Will assemble the packets in order
  • Example protocols: TCP, UDP

Transport Control Protocol (TCP)

  • This is the TCP/IP version of the OSI transport layer
  • TCP will ensure any lost packet is re-sent: used for sending files

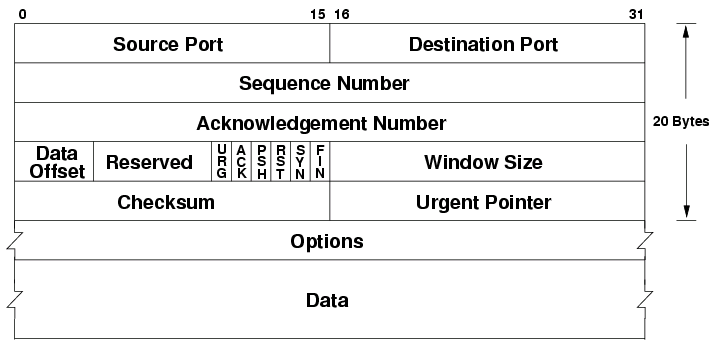

  • UDP doesn’t bother: if a packet doesn’t arrive, continue on: used for live streams TCP header

Protocol stack: session & presentation layers

  • Are charged with such tasks as managing network sockets, compressing/encoding/ encrypting the data, etc.
  • These layers do not exist in the TCP/IP model!
    • This functionality is included in the TCP/IP application layer
  • Example protocols: TLS, SSL, NetBIOS

Protocol stack: application layer

  • Is the top-level protocol used to communicate to the application on the other end
  • Example protocols: DHCP, DNS, FTP, HTTP, IMAP, NTP, POP, SMTP, SSH

More about TCP/IP

Network device terminology

  • Node: any device on a network
  • Switch: a node that connects networks on the data link layer only
    • Also called a bridge
  • Router: a node that connects networks on the network layer
  • Gateway: a node that connects two networks that (potentially) use different protocols
    • Also translates addresses, etc.
  • Firewall: blocks ‘bad’ traffic (more on this in a few slides)

Basic Network Security

Firewall

  • A firewall prevents unrequested network connections from outside hosts
    • Typically part of a residential ‘gateway’ or ‘router’
    • It isolates the ‘inside’ network and the ‘outside’ network
    • If you request data (a http connection), the sent data is then ‘requested’ data, and is allowed to pass through
    • You can ‘poke a hole’ in a firewall to allow access to a certain port (such as ssh)

Firewall types

  1. Packet filter: removes packets based on the information in their TCP packet (source, destination, port, etc) - can filter out individual hosts this way
  2. Circuit-level gateway: forces all data to a given host or network to go through a single gateway, which manages security
  3. Application-level gateway: only allows specific application-level data through (ssh, but not http, for example)

Firewall types

  • Residential ‘firewalls’ do all three
    • 1 (packet filter) is usually not done by the typical user
    • 2 (circuit-level gateway) is by their very design
    • 3 (application-level gateway) is what most people do when configuring their residential firewalls

TCP attacks

  • Imagine Alice is sending something to Bob
  • A host between Alice and Bob, Mallory, can intercept (and potentially discard) these packets
    • Similar to a man-in-the-middle attack
  • But to modify the packets, the attacker would have to know the TCP state
    • Starting sequence numbers, port numbers, etc.
    • These are often easily guessable
      • Ports are well-known
      • Sequence numbers are often predictable

TCP attacks

  • If Mallory can guess the state, then s/he can impersonate one or the other (or both), thus hijacking the connection
  • Instead of downloading a valid program from a trusted website, instead you are now downloading some type of malware
  • How can we prevent this?
    • By keeping anybody from figuring out the state of the TCP connection
    • This state is discernible from the TCP packet headers

IP Security (IPsec)

  • IPsec is a protocol suite designed to allow encryption of IP packets (at the Network level)
    • Other similar ones exist: TLS (Transport Layer Security) does something similar at the Transport level
      • SSL (Secure Sockets Layer) is the predecessor to TLS
  • Allows for authentication, exchange of cryptographic keys, and encryption/decryption of IP data packets
    • Encryption is via AES

Virtual Private Network (VPN)

  • A firewall differentiates between ‘inside’ and ‘outside’ to allow more access to those ‘inside’
    • How, then, does a (valid) user have that level of access from the ‘outside’?
    • Example: using UVa’s library’s access for online books and what-not
      • It’s allowed on-grounds (technically, for any computer in the virginia.edu domain)
      • But not off-grounds (such as from va-67-76-91-214.dyn.embarqhsd.net)
  • The answer: VPNs

Virtual Private Network (VPN)

  • A VPN makes potentially vastly separated IP addresses appear to be a single (virtual) private network
    • Then, the access is provided to that private network
  • Keeps one from having to construct one’s own private network (expensive)
  • It matters not what type of ISP the user is on
  • Typically requires a setting or two in a residential ‘gateway’ (specifically, IPsec)

WiFi encryption

  • This encrypts all data sent over a wireless network
    • This encryption is done at the network or data-link level
    • Application-level encryption (https, ssh, imaps, etc.) is on top of WiFi encryption
  • There are two types
    • Wired Equivalent Privacy (WEP)
    • WiFi Protected Access (WPA and WPA2)

Wired Equivalent Privacy (WEP)

  • It does not stand for “Wireless Encryption Protocol”
  • Created in 1997 to provide confidentiality comparable to that of a traditional wired network
  • Security weaknesses were identified in 2001
  • In 2003, WEP was replaced by WPA (and, later, WPA2)

WEP weaknesses

  • It uses a stream (aka character) cipher RC4 to encrypt each packet
  • RC4 is (essentially) secure, but one weakness is that repeated keys can allow an RC4 encoded message to be cracked
    • There is one RC4 key, and many different initialization vectors or IVs; one IV for each packet

Encryption without IVs

Encryption with IVs

(at least what should happen)

WEP weaknesses

  • WEP uses 24-bit IVs
    • Because of the way the IVs are used, there is a 50% chance of a key being repeated after 5,000 packets
    • This can lead to cracking the RC4 key, and reading all the WEP encrypted data
    • On a busy network, this can happen in under 1 minute

WiFi Protected Access (WPA & WPA2)

  • In 2003, it was announced that WEP had been superseded by WPA
  • WPA2 followed the following year (2004)
  • WPA uses RC4 (character cipher); WPA2 uses AES (block cipher) for the data encryption
  • Corresponds to IEEE standard 802.11 (for WPA) or 802.11i (for WPA2)
  • Still considered ‘secure’ for WiFi encryption

WPA(2) weaknesses

  • Password cracking due to weak passwords
    • Look-up tables exist for a million different WPA/WPA2 passwords
  • Brute force attacks can crack moderate passwords
    • A truly random password of 13 characters (from the 95 available) can prevent brute-force attacks

Denial of Service (DoS) attacks

Denial-of-service (DoS) attack

  • A website (or other network resource) attempts to provide a service to authorized users
  • If one can stop the website or resource, then service is being denied to the proper users
    • Hence the name
  • It typically is done via flooding the website or resource with network packets, using up its bandwidth
    • If done from one host, the site can easily packet-filter out that host

Denial-of-service (DoS) attack

  • Thus, it is most often done from many sites
    • This is a distributed denial of service (DDoS) attack
    • Often done via a zombie botnet

DoS attacks: ping flood

  • ICMP is protocol on the Network level, along with IP, and is used for the ‘ping’ command
    • A ping flood attack (can only be run as root on most UNIX systems)
    • It sends as many pings out as the bandwidth can support
    • The (combined) bandwidth of the attacker must be greater than the (combined) bandwidth of the target

DoS attacks: SYN flood

  • In TCP (transport level), a SYN packet starts a ‘handshake’ to open up a connection
    • Response is an ‘ACK’ acknowledging the SYN
    • Then another ACK acknowledging the first ACK

DoS attacks: SYN flood

  • A SYN flood attack sends a TCP SYN packet with a forged ‘from’ field
    • Each SYN packet is treated like a connection request
    • The target site will span a half-open connection, send a ACK, and wait until it (never) arrives
    • This saturates the number of connections the attacked server can make, causing it to be unresponsive to the legitimate users

DoS attacks: reflected attack

  • Instead of forging a non-existent source address, make the source be the target machine
  • Then, when the target sends a reply (which is automatically done with many types of network datagrams), it goes back to the target, using up their bandwidth a second time

DoS attacks: teardrop attacks

  • Sending mangled IP fragments with overlapping, over-sized payloads to the target
  • Due to a bug in the TCP/IP fragmentation re-assembly code, this would crash the operating system
    • This bug has long since been patched (in 1999/2000), but was existent on Windows 3.1x, 95, and NT, as well as Linux versions prior to 2.0.32 and 2.1.63
  • This means that just sending a “bad” network packet to a computer would crash that computer!

DoS attacks: brute force

  • Not very elegant, but very effective
  • Just flood the machine with requests, such as http GET
  • This does not require much knowledge, just access to a lot of computers
    • Probably via a zombie botnet

Wireshark

Obtaining Wireshark

“Normal” pcaps

http webmail login

Malicious pcaps

Obtaining pcaps
