Binary Exploits

1st Generation Exploits

Vulnerabilities and Exploits

  • Vulnerability is often used to refer only to vulnerable code in an OS or applications
  • More generally, a vulnerability is whatever weakness in an overall system makes it open to attack
  • An attack that was designed to target a known vulnerability is an exploit of that vulnerability

Varieties of Vulnerabilities

  • Buffer overflow on stack
    • Primarily used to overwrite the return address
  • Buffer overflow on heap
    • Return addresses are not on the heap
    • Other pointers are on the heap and can be overwritten, e.g. function & file pointers
  • Format string attacks
  • Memory management attacks
  • Failure to validate input
  • URL encoding failures; … the list goes on

Classifying Vulnerabilities

  • Szor classifies vulnerabilities and exploits by generation
  • First generation: Stack buffer overflow
  • Second generation:
    • Off by one overflows, heap overflows, file pointer overwriting, function pointer overwriting
  • Third generation
    • Format string attacks, memory (heap) management attacks
    • … the list is lengthy

First Generation Exploits

  • Buffer overflow is the most common exploit
    • Array bounds not usually checked at run time
  • What comes after the buffer being overflowed determines what can be attacked
    • The return address is on the stack at a known offset after the last local variable
    • Return address can be changed to cause a return to malicious code
  • Buffer overflows are easy to guard against, yet they remain the most common code vulnerability

Stack Buffer Overflows

2nd Generation Exploits

Heap Buffer Overflow

  • Example: overwriting a file pointer
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
int main(int argc, char **argv) {
    int ch = 0, i = 0;
    FILE *f = NULL;
    static char buffer[16], *szFileName = "C:\\harmless.txt";
    ch = getchar();
    while (ch != EOF) { /* User input can overflow buffer[] */
        buffer[i++] = ch;  ch = getchar();
    }
    f = fopen(szFileName, "w+b"); /* might be modified! */
    fputs(buffer, f);
    fclose(f);
    return 0;
}

Heap Buffer Overflow

  • Examine the key lines of the example code:
static char buffer[16], *szFilename = "C:\\harmless.txt";
  • Both variables are placed in global heap (because they are static) and will be consecutive in the heap
  • When buffer[] is overflowed with keyboard input, it will overwrite szFilename:
while (ch != EOF) { // User input can overflow buffer
    buffer[i++] = ch;
    ch = getchar();
}

Heap Buffer Overflow

  • An attacker who can compile the code and dump it to figure out addresses can now make szFileName point anywhere he wants
  • For example, he could make it point to argv[1]; this means he can pass in a file name on the command line!
  • So, the attacker passes in C:\autoexec.bat or some other protected system file name on the command line; if this program is a system utility that runs with admin privileges, the system file can be overwritten

Off by One Attack

  • The C language starts array indices at zero, which is not always intuitive for beginning programmers
  • This often leads to off-by-one errors in code that fills a buffer
void vuln(char *foobar) {
    int i;
    char buffer[512];
    for (i = 0; i <= 512; ++i) // Should be <, not <=
      buffer[i] = foobar[i];
}
int main(int argc, char *argv[]) {
    if (2 == argc)
      vuln(argv[1]);
    return 0;
}

Off by One Attack

  • How much damage could a one-byte exploit cause?
  • It depends on what is after the buffer
    • If it’s a stack canary, then there will be no effect
    • If it’s the return address, then it can be a typical buffer overflow
    • It could also be the saved EBP location between them (the frame pointer)
      • The attacker cannot directly alter the return address in this case
      • S/he can alter the last byte of the saved EBP

Off by One Attack

  • When the vulnerable function returns, the calling function will now have a bogus stack frame
    • This bogus stack frame can be arranged to lie within the buffer that was partly filled with malicious code
    • When the caller of the vulnerable function returns, it will return into the start of the malicious code section of the buffer

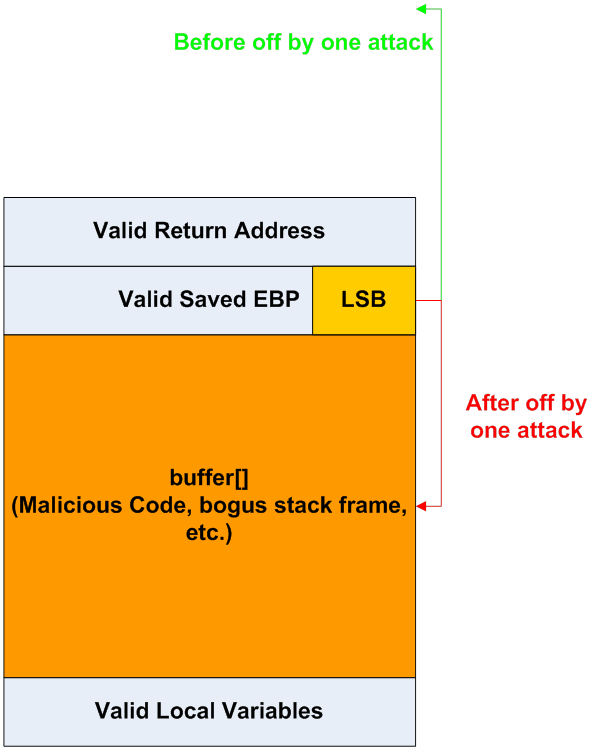

Off by One Stack Frame

  • The caller of the vulnerable function ends up returning to a fake return address (inside buffer):
    • 512 bytes of buffer[] received malicious code, plus a bogus stack frame, from the keyboard, as hex strings
    • Byte 513 from the keyboard was the new lowest byte of the valid saved EBP
      • Lowest because the x86 is little-Endian
      • Thus making the caller’s stack frame be inside buffer[]

Off by One Stack Frame

Off by One: Real Examples

Function Pointer Overwriting

  • A system utility could have a function pointer to a callback function, declared after a buffer (Szor, Listing 10.5)
  • Overflowing the buffer overwrites the function pointer
  • By determining the address of system() on this machine, an attacker can cause system() to be called instead of the callback function
  • Macromedia Flash example

3rd Generation Exploits

Format String Attacks

  • Many C library functions produce formatted output using format strings
    • e.g. printf(), fprintf(), wprintf(), sprintf(), etc.)
  • These functions permit strings that have no format control to be printed (unfortunately):
char buffer[13] = "Hello, world!";
printf(buffer);        /* Bad programmer! */
printf("%s", buffer);  /* Good programmer! */

Format String Attacks

  • Consider:
char buffer[13] = "Hello, world!";
printf(buffer);        /* Bad programmer! */
  • The format string (1st parameter to printf()) is not a fixed string
  • This non-standard approach creates the possibility that an attacker will pass a format string rather than a string to print, which can be used to write to memory

Format String Attack Example

Source code: vuln.c (html)

void vuln(char buffer[256]) {
  printf(buffer);
  /* Bad; good would be: printf("%s",buffer) */
}
int main(int argc, char *argv[]) {
   char buffer[256] = "";  /* allocate buffer */
   if (2 == argc)  /* copy command line */
      strncpy(buffer, argv[1], 255);
   vuln(buffer);
   return 0;
}
  • The included Makefile compiles this to vuln-32bit.exe and vuln-64bit.exe
  • What if the user passes %x on the command line?

Format String Attack Example

  • For sanity sake, we will probably want to run it via:
setarch x86_64 -v -LR vuln-32bit.exe
setarch x86_64 -v -LR vuln-64bit.exe
  • This isn’t necessary, but it will make our lives easier
    • Since the addresses will be the same each time we run it

Format String Attack Example

  • If the user passes %x on the command line, then printf() will receive a pointer to a string with "%x" in it on the stack
  • printf() will see the %x and assume there is another parameter above it on the stack
  • Whatever is above it on the stack will be printed in hexadecimal
  • Difference between correct and incorrect uses of printf() is seen in next diagram

Example: Uses of printf()

  • Immediately after the call to printf(), but before the prologue code in printf():

  • This is the 32-bit version

Example: Uses of printf()

  • For the 64-bit version:
    • The return addresses are still on the stack
      • 0x4005f3 from printf() to vuln()
      • 0x40067c from vuln() to main()
    • The parameters are in registers (rdi for the first, rsi for the second, etc.)
  • Note that, in both cases, there may be other values between the stack values shown

What can we do with this?

  • If we provide %x%x%x%x%x%x%x%x, it will print the values on the stack
    • For 8-byte values, try using %lx instead of %x
  • Keep in mind that the first 5 will print the register contents!
    • Wait – why only the first 5?

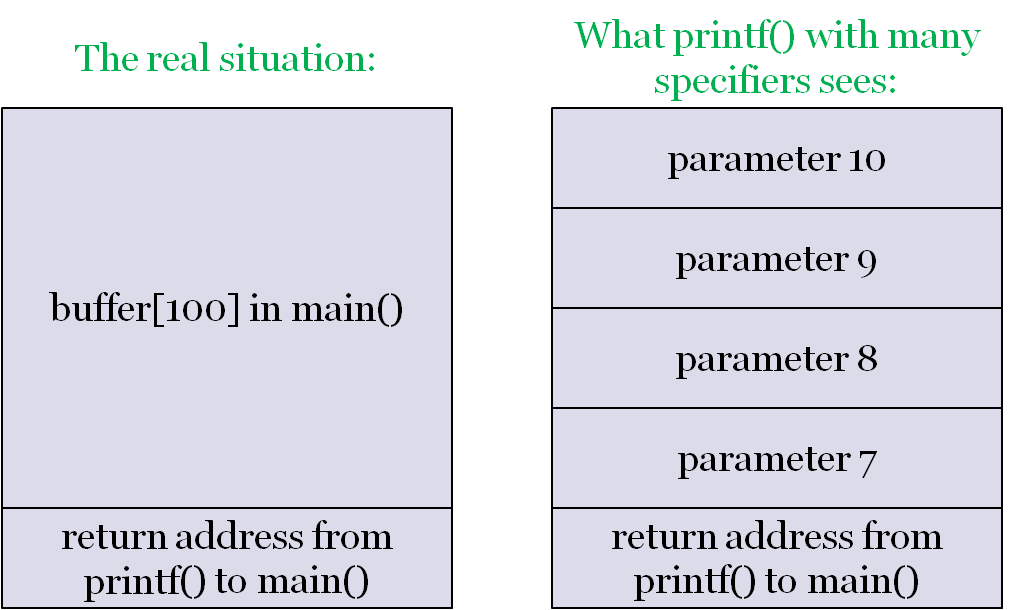

Faking printf() parameters

Overwriting Within the Stack

  • The format string can also be used to force printf() to write to memory via %n:
printf("foobar%n", &nBytesWritten);
  • This prints “foobar” and then writes 6 to nBytesWritten
  • We can also use %hn for a short, or %ln for a long
  • Now we can start writing to memory, rather than just reading it…

Writing to the stack

  • If we want to write a specific value, such as a pointer address, we just have to write that many bytes to stdout
    • There are shortcuts to this: use a specifier such as %.4196006u
  • Note that values in the buffer are both the parameters AND the values read into them
    • Thus, we can supply the address to write to

The stack diagram again

A vulnerability

Consider the exploitable.c (html) code:

int exploited() {
  printf("Got here!\n");
  exit(0);
}
int main(void) {
  char buffer[100];
  while (fgets(buffer, sizeof buffer, stdin)) {
    printf(buffer);
  }
  return 0;
}
  • We can supply a string such that exploited() will be called, but we won’t see that here
    • Interested in the details? Take Defense Against the Dark Arts, or see the slide set here

Heap Management

  • A heap allocation (e.g. via malloc()) allocates a small control block, with pointer and size fields, just before the memory that is allocated
  • An attacker can underflow the heap memory allocated (in the absence of proper bounds checking, or with pointer arithmetic) and overwrite the control block
  • The heap management software will now use the overwritten memory pointer info in the control block, and can thus be redirected to write to arbitrary memory addresses

Input Validation Failures

  • There are numerous ways in which an application program can fail to validate user input
  • We will examine the two failures that are most important in the Internet age:
    • URL encoding and canonicalization
      • http://domain.tld/passwords.txt is not allowed by the webserver, but http://domain.tld/user/../passwords.txt may bypass naive security checks

Input Validation Failures

  • There are numerous ways in which an application program can fail to validate user input
  • We will examine the two failures that are most important in the Internet age:
    • MIME header parsing
      • Exploit: Make an attachment of MIME type audio/x-wav but make the file name be virus.exe.
      • This was a bug in IE back in 2001 which allowed W32/Badtrans and W32/Klez could exploit it.

Miscellaneous Vulnerabilities

Miscellaneous Vulnerabilities

  • Mistakes by system administrators, users, bad default security levels in applications software or firewalls, etc., can all create vulnerabilities
  • Most exploits (including all 3 generations) are referred to as blended attacks
    • Because there is always a mixture of an exploit and a particular type of malicious code
    • e.g. overflowing a buffer is an exploit, but depositing a virus and running it is the second stage of the blended attack
  • We will review some non source code examples

System Administration Vulnerabilities

  • Failure to provide secure utilities
    • e.g. SSL/SSH remote login utilities were not commonly used a decade ago
  • Loose file system access rights and user privilege levels
    • many users have no idea that everyone can read many of their files
    • or the 4th octal digit of chmod permissions

System Administration Vulnerabilities

  • Errors in firewall configuration (Szor, sec. 14.3)
    • Allows attackers unauthorized access
    • Permits denial of service attacks to continue instead of excluding the flood of packets

User Behavior Vulnerabilities

  • Poor password selection
    • Too short; all alphabetic; common words
    • 1988 Morris worm used a list of only 432 common passwords, and succeeded in cracking many user accounts all over the internet
    • This was the main reason the worm spread more than the creator thought it would; he did not realize that password selection was that bad!
  • Opening executable email attachments

Vulnerabilities: Do We Ever Learn?

  • All of these vulnerabilities have been known for years – buffer overflows for over 40 years!
  • Yet, the number of exploits is increasing
    • 323 buffer overflow vulnerabilities reported in 2004 to the national cyber-security vulnerability database (http://nvd.nist.gov/)
    • 331 buffer overflow vulnerabilities reported in just the first 6 months of 2005!
    • They don’t bother to keep track anymore…

Avoiding Vulnerabilities

  • Good password selection
    • Many newer systems even allow pass phrases, i.e. multiple words with punctuation or blanks between
    • System should try its own dictionary attack and not permit you to choose a password that can be defeated
  • Don’t store a password unencrypted anywhere in a system, even in a temporary variable in a program

Avoiding Vulnerabilities

  • Don’t open executable email attachments
  • Review access permissions throughout your file directory structure
  • Display and review your firewall settings

Defenses

Compiler-Based Prevention

  • One approach: Modify the C language itself with a new compiler and runtime library, as in the Cyclone variant of C
    • Overhead for bounds checking, garbage collection, library safeguards, etc., ranges from negligible to >100% for the worst cases
  • Another approach: leave the language alone, but modify the compiler to emit stack and/or buffer overflow safeguards in the executable
    • Examples we will see: StackGuard, ProPolice, and StackShield

StackGuard: Stack Canaries

  • StackGuard inserts a marker in between the frame pointer and the return address on the stack
    • Marker is called a canary, as in the “canary in a coal mine”
  • If a buffer overflow overwrites the stack all the way to the return address, it will also overwrite the canary
  • Before returning, the canary is examined for modification

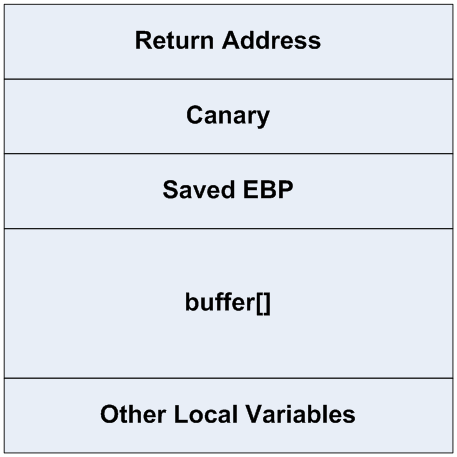

Stack Canary Operation

  • Overflowing buffer[] tramples on canary
  • Does not prevent trashing the EBP (or RBP), local function or file pointers, etc.
  • Canary value: NUL-CR-LF-EOF; very difficult to write out from a string

ProPolice: Better Stack Canaries and Frame Layout

  • ProPolice (a.k.a. SSP, Stack-Smashing Protector) from IBM makes a couple of major improvements to StackGuard
    • Canary is placed below the saved EBP to protect it
    • The stack frame layout is rearranged so that non-array locals, such as function pointers and file pointers, are placed below arrays, so that overflowing the arrays cannot reach the pointers

Stack Canary Limitations

  • Stack canaries only guard against a direct attack on the stack, e.g. overwriting a portion of the stack directly from its neighboring addresses
  • We saw that a format string attack is indirect: it computes the location of the return address, then overwrites just that address and does not overflow from neighboring addresses
    • Hence, it does not overwrite a canary

StackShield: Protecting Return Addresses

  • StackShield is a Linux/gcc add-on that modifies the ASM output from gcc to maintain a separate data segment with return addresses
  • Removing the return addresses from the data stack prevents both direct and indirect data attacks on the return address

StackShield: Protecting Return Addresses

  • Also computes the range of valid code addresses and performs a range check on all function calls and returns
    • A call to, or return into, a data area will be detected as invalid because of the address range

Operating System Defenses

  • Don’t allow execution in the stack
    • Exploit could still execute code from the heap or other global data area
  • Instead of read and write permission bits on pages, add an execute permission bit and set it to false on all data pages (heap, stack, etc.)
    • This is supported in hardware on the Intel x86-64 architecture and in the versions of Microsoft Windows (from XP onward) that run on it

Case Study: Slapper Worm

  • The 2002 worm known as Linux/Slapper was a very complex attack on heap buffer overflow vulnerabilities within the Apache web server
  • Vulnerability: In secure mode (i.e. on an https:// connection under SSL [Secure Socket Layer]), Apache copied the client’s master key into a fixed-length buffer key_arg[] that was just big enough to hold a valid 8-byte key
    • But didn’t do any bounds checking, even though the key length is passed as a second parameter with the key

Case Study: Slapper Worm

  • Exploit: Pass in a long key and key length, such that a certain magic address is overwritten

Slapper: The Magic Address

  • The magic address that Slapper wanted to overwrite was the GOT (Global Offset Table) entry for the free() function
    • GOT is the Unix/ELF equivalent of the IAT (Import Address Table) in a Windows PE file; Slapper is therefore an IAT modifying EPO worm
    • I.e. If you redirect the GOT entry for free(), then calls into the C run-time library that should have gone into free() are now redirected to a new address

Slapper: The Magic Address

  • The relative distance from the key_arg[] buffer to the GOT entry for free() differs among Apache revisions and among different Linux revisions for which Apache was compiled
  • The Slapper author computed the addresses and distances across 23 (!) different combinations of Apache revision/Linux system

Slapper: The Magic Address

  • The first client message the worm sends is a request for Apache to identify its revision number and the Linux system version code (a legitimate request, as Apache services can depend on these numbers)
    • The exploit code was then tuned for the particular revision/system
  • Ultimately, Slapper ran its own shellcode on the server system, with Apache privileges, when Apache executed a call to free()
  • See Szor, 10.4.4, for lots more details

https://aaronbloomfield.github.io/ics
