CS 2150 Roadmap

Data Representation

Program Representation



string



int x[3]



char x



0x9cd0f0ad



01101011		 vertical red double arrow
Objects

Arrays

Primitive types

Addresses

bits

Java code


C++ code


C code


x86 code


IBCM


hexadecimal		 vertical green double arrow
High-level language

Low-level language

Assembly language

Machine code

Hash Tables

  • Hash table
    • fixed size array of some size, usually a prime number
      • Should be larger than the number of elements
  • Given a key space:
blob
hash function
hash(k)
→


hashtable

0
1
2

...

tablesize‑1

Hash functions KLA

  • I'm going hash all of you into 10 buckets (0-9) by your birthday
    • (you are welcome to make up another birthday, as long as you are consistent)
  • The hash functions:
    • By the decade of your birth year
      • hash(birthday) = (year/10) % 10
    • By the last digit of your birth year
      • hash(birthday) = year % 10
    • By the last digit of your birth month
      • hash(birthday) = month % 10
    • By the last digit of your birth day
      • hash(birthday) = day % 10

Keys

  • How can we hash the keys if the keys can be anything?
  • Best one binary comparison can do is eliminate one half of the elements Θ(log n)
  • We want Θ(1)
  • The keys must be bits, so we can do better!

"Hello"

['H','i',\0]

3.14

'x'

0x42381a

01001010		 vertical red double arrow

Objects

Arrays

Primitive types

Addresses

bits

Example

  • Key space: integers

  • Table size: 10

  • hash(k) = k mod 10
    • Technically, hash(k) = k,
      which is then mod'ed by
      the table size of 10

  • Insert: 7, 18, 41, 34

  • How do we find them?
0
141
2
3
434
5
6
77
818
9

Another Example

  • Key space: integers

  • Table size: 6

  • hash(k) = k mod 6

  • Insert: 7, 18, 41, 34, 12

  • How do we find them?
018 12
17
2
3
434
541

Sample String Hash Functions

  • Key space: strings
  • A string s is made up of characters si
  • \( s = s_0s_1s_2s_3\ldots s_{k-1} \)



  1. \( hash(s) = s_0 \mod table\_size \)

  2. \( hash(s) = \left( \sum_{i=0}^{k-1}s_i \right) \mod table\_size \)

  3. \( hash(s) = \left( \sum_{i=0}^{k-1}s_i*37^i \right) \mod table\_size \)

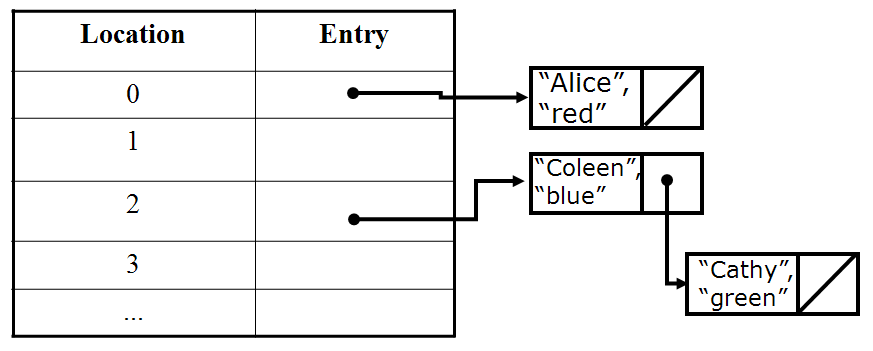

Separate Chaining

0
1
2
3
4
5
6
7
8
9
  • All keys that map to the same hash value are kept in a "bucket"
    • This "bucket" is another data structure, typically a linked list


  • hash(k) = k mod 10

  • Insert: 10, 22, 107, 12, 42

Linear Probing

037
114
221
3
4
5
6
7
827
94
  • Check spots in this order:
    • hash(k)
    • hash(k)+1
    • hash(k)+2
    • hash(k)+3
    • etc.

  • hash(k) = 3k+7
    • Which is then mod'ed by the table size (10)
    • Result: hash(k) = (3k+7) mod 10

  • Insert: 4, 27, 37, 14, 21
    • hash(k) values: 19, 88, 118, 49, 70, respectively

Quadratic Probing

014
1
237
322
4
534
6
7
827
94
  • Check spots in this order:
    • hash(k)
    • hash(k)+12 = hash(k)+1
    • hash(k)+22 = hash(k)+4
    • hash(k)+32 = hash(k)+9
    • etc.

  • hash(k) = 3k+7
    • Which is then mod'ed by the table size (10)
    • Result: hash(k) = (3k+7) mod 10

  • Insert: 4, 27, 14, 37, 22, 34
    • hash(k) values: 19, 88, 49, 118, 73, 109, respectively

Double Hashing

069
1
260
358
4
5
649
7
818
989
  • Check spots in this order:
    • hash(k)
    • hash(k) + 1 * hash2(k)
    • hash(k) + 2 * hash2(k)
    • hash(k) + 3 * hash2(k)
    • etc.

  • hash(k) = k
    • The hash function was made simpler for this example...
    • Which is then mod'ed by the table size (10)
    • Result: hash(k) = k mod 10
  • hash2(k) = 7 - (k mod 7)

  • Insert: 89, 18, 58, 49, 69, 60

Double Hashing Thrashing

010
1
212
3
414
5
616
7
818
9
  • hash(k) = k mod 10
    • Same as the previous slide
    • Result: hash(k) = k mod 10

  • hash2(k) = (k mod 5) +1

  • Insert: 10, 12, 14, 16, 18, 36
